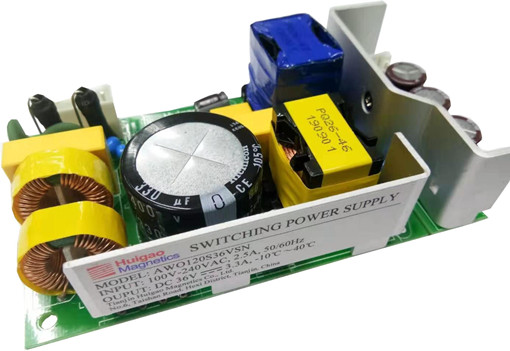

AWO120S36VSN
▲ 峰值负载功率可达 210W,可维持6s
▲ 保护种类: 短路/过电压/过流
▲ 冷却方式: 自然冷却
▲ 通过医疗安规认证（2×MOPP初次级之间）
▲ 设计满足 IEC60601-1 (LVD,EMC)
- 产品规格
- 档案下载
| Input 输入 | |||||
| Input Voltage Range 输入电压 | 100-240VAC | ||||
| Input Frequency 输入频率 | 47-63 Hz | ||||
| Input Current (115VAC/230VAC) 输入电流 | 2.5A/1.3A | ||||
| Inrush Current (Cold start) 浪涌电流 | 40A | ||||
| Leakage Current 漏电流 | <200uA at 230VAC, <100uA at 115VAC | ||||
| Efficiency (Typ) (230VAC) 效率 | 88% | ||||
| Output 输出 | |||||
| Output Voltage(Typ.) 输出电压 | 36VDC | ||||
| Rated Current 额定电流 | 3.3A | ||||
| Current Range 电流范围 | 0~5.8A | ||||
| Rated Power 额定功率 | 120W | ||||
| Peak Power 峰值功率 | 210W | ||||
| Line Regulation 线性调整率 | 0.5% | ||||
| Load Regulation 负载调整率 | 1% | ||||
| Start up Time 启动时间 | 3000ms(at full load) | ||||
| Rise Time 上升时间 | 20ms (at full load) | ||||
| Hold up Time (Typ) 保持时间 | 20ms (at full load) | ||||
| MAX Ripple & Noise (115VAC/230VAC) 最大纹波和噪声 | 200mVp-p | ||||
| Temperature Coefficient (0-50℃ ) 温度系数 | ± 0.05%/℃ | ||||
| Overvoltage Protection 过电压保护 | 41.4~50.4V, Latching (unit shutdown), cycle AC input to reset | ||||
| Overcurrent Protection 过流保护 | 5.94-7.59A,Hiccup mode,automatic recovery | ||||
| Short Circuit Protection 短路保护 | Hiccup mode,automatic recovery | ||||
| Environmental 环境 | |||||
| Operating Temperature 工作温度 | -10~+70℃ | ||||
| Storage Temperature 储存温度 | -40~+85℃ | ||||
| Operating Humidity (non condensing) 工作湿度 | 20%-90% RH | ||||
| Cooling 冷却方式 | Convection | ||||
| Altitude 工作海拔高度 | 3000m | ||||
| Withstand Voltage (For 1 minute) 耐压 | Input-PE: 1.5kVAC (1×MOPP) Input-Output:4.0kVAC (2×MOPP) Output- PE: 3.0kVAC (2×MOPP) | ||||
| Vibration (Non Operating) 耐震动 | 10-55Hz(1min sweep). 19.6m/s2; x,y,z for 1 hour each | ||||
| Shock 耐冲击 | 30g Peak，half-sine，6 axis | ||||
| EMC & Safety 安规和电磁兼容 | |||||
| Conducted & Radiated EMI 射频 | Designed to meet EN55011/EN55032-B,FCC-ClassB | ||||
| Harmonic Current 谐波电流 | EN61000-3-2 class A； EN61000-3-2 class C for loads ≥20% | ||||
| Voltage Flicker 电压闪烁测试 | EN61000-3-3 class A | ||||
| ESD 静电放电扰度 | EN61000-4-2,Level 3,Class A | ||||
| Radiated Susceptibility 辐射抗扰度 | EN61000-4-3,Level 3,Class A | ||||
| Electrical Fast Transient Burst 脉冲群抗扰度 | EN61000-4-4,Level 3,Class A | ||||
| Surge Susceptibility 浪涌 | EN61000-4-5,Level 3,Class A | ||||
| Conducted Susceptibility 传导抗扰度 | EN61000-4-6,Level 3,Class A | ||||
| Magnetic fields 磁场抗扰度 | EN61000-4-8,Level 3,Class A | ||||
| Voltage Dips and input Interruptions 瞬跌与中断 | EN61000-4-11,0%, 5000ms; 40%,100ms; 70%,10ms;Perf Criteria B, B, A | ||||
| Safety Agency Certifications 安全认证 | IEC60601-1,TUV/CE Mark (LVD,EMC) | ||||
| Other 其他 | |||||
| Weight (typ) 重量 | 290g | ||||
| Size (LXWXH) (mm) 尺寸（长*宽*高） | 127×76.2×29.7 | ||||
| Connectors 连接器型号 | |||||
| Warranty 保修期 | Three years | ||||
