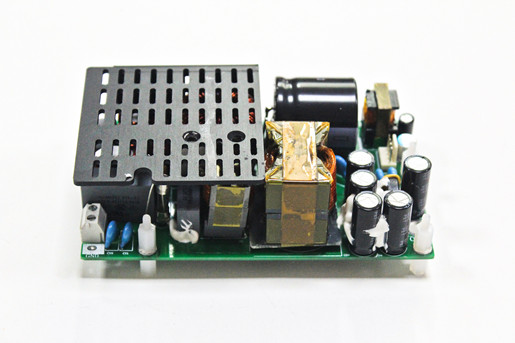

B720A024D-XX
▲ 效率: 94%
▲300W (720W峰值)自然冷却，720W风冷。
▲ 标准5*3英寸，薄型设计
▲ 高转换效率 （95%）
▲ 通过医疗安规认证（2×MOPP）
▲ B级传导辐射
▲ 认证情况：设计满足IEC60601-1
- 产品规格
- 档案下载
| Input 输入 | |||||
| Input Voltage Range 输入电压 | 100-240VAC | ||||
| Input Frequency 输入频率 | 47-63 Hz | ||||
| Input Current (115VAC/230VAC) 输入电流 | 8A/4.2A | ||||
| Inrush Current (Cold start) (115VAC/230VAC) 浪涌电流 | 20A/40A | ||||
| Leakage Current 漏电流 | <500uA at 240VAC | ||||
| Touch Current(Enclosure Leakage) 接触漏电流 | |||||
| Efficiency (Typ) (230VAC) 效率 | 94% | ||||
| Output 输出 | |||||
| Output Voltage(Typ.) 输出电压 | 24VDC | ||||
| Rated Current 额定电流 | 30A | ||||
| Current Range 电流范围 | 0.1~30A | ||||
| Rated Power 额定功率 | 300W Convection Cooled, 720W with Forced Air | ||||
| Peak Power 峰值功率 | ? W | ||||
| Line Regulation 线性调整率 | 0.5% | ||||
| Load Regulation 负载调整率 | 1% | ||||
| Start up Time 启动时间 | 700ms(at full load) | ||||
| Rise Time 上升时间 | 20ms (at full load) | ||||
| Hold up Time (Typ) 保持时间 | 10ms (at full load) | ||||
| MAX Ripple & Noise (115VAC/230VAC) 最大纹波和噪声 | 240mVp-p | ||||
| Temperature Coefficient (0-50℃ ) 温度系数 | ± 0.02%/℃ | ||||
| Overvoltage Protection 过电压保护 | 30~34.8V, Latching (unit shutdown), cycle AC input to reset | ||||
| Overcurrent Protection 过流保护 | ≥ 31.5A,Hiccup mode,automatic recovery | ||||
| Short Circuit Protection 短路保护 | Hiccup mode,automatic recovery | ||||
| Over Temperature Protection 过温保护 | Shutdown. Recover until temperature turns to normal | ||||
| Standby Voltage 辅电 | 12V,0.5A | ||||
| Remote ON/OFF 远程开关 | Opto-isolated,inhibit:Low=ON,High=OFF | ||||
| Environmental 环境 | |||||
| Operating Temperature 工作温度 | -5~+40℃ | ||||
| Storage Temperature 储存温度 | -20~+75℃ | ||||
| Operating Humidity (non condensing) 工作湿度 | 20%-90% RH | ||||
| Cooling 冷却方式 | Convection/ Forced Air | ||||
| Altitude 工作海拔高度 | 2000m | ||||
| Withstand Voltage (For 1 minute) 耐压 | Input-FG/PE: 1.5kVAC Intput-Output:4.0kVAC Output-FG: 1.5kVAC | ||||
| Vibration (Non Operating) 耐震动 | 10-55Hz(1min sweep). 19.6m/s2; x,y,z for 1 hour each | ||||
| Shock 耐冲击 | 30g Peak，half-sine，6 axis | ||||
| EMC & Safety 安规和电磁兼容 | |||||
| Conducted & Radiated EMI 射频 | Designed to meet EN55011/EN55032-B,FCC-ClassB | ||||
| Harmonic Current 谐波电流 | EN61000-3-2 class A； EN61000-3-2 class C for loads ≥20% | ||||
| Voltage Flicker 电压闪烁测试 | EN61000-3-3 class A | ||||
| ESD 静电放电扰度 | EN61000-4-2,Level 3,Class A | ||||
| Radiated Susceptibility 辐射抗扰度 | EN61000-4-3,Level 3,Class A | ||||
| Electrical Fast Transient Burst 脉冲群抗扰度 | EN61000-4-4,Level 3,Class A | ||||
| Surge Susceptibility 浪涌 | EN61000-4-5,Level 3,Class A | ||||
| Conducted Susceptibility 传导抗扰度 | EN61000-4-6,Level 3,Class A | ||||
| Magnetic fields 磁场抗扰度 | EN61000-4-8,Level 3,Class A | ||||
| Voltage Dips and input Interruptions 瞬跌与中断 | EN61000-4-11,0%, 5000ms; 40%,100ms; 70%,10ms;Perf Criteria B, B, A | ||||
| Isolation Resistance 绝缘电阻 | Output-PE: >100MΩ,Output-FG 500VDC | ||||
| Safety Agency Certifications 安全认证 | IEC60601-1,TUV/CE Mark (LVD,EMC) | ||||
| Other 其他 | |||||
| Weight (typ) 重量 | 500g | ||||
| Size (LXWXH) (mm) 尺寸（长*宽*高） | 123.9×76.2×37 | ||||
| Warranty 保修期 | Three years | ||||
